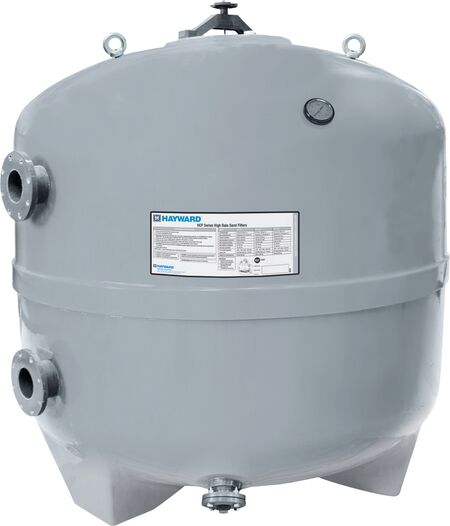

Sand Filter HCF Brasil Series 2350 by Hayward
Features
Manufacturer:
Hayward
Model:
HCF Brasil
Diameter:
2350 mm
Flow rate:
130 - 217 m3/h
Connection:
Sand Filter HCF Brasil Series 1050 by Hayward.
Excellent performance and reliability.

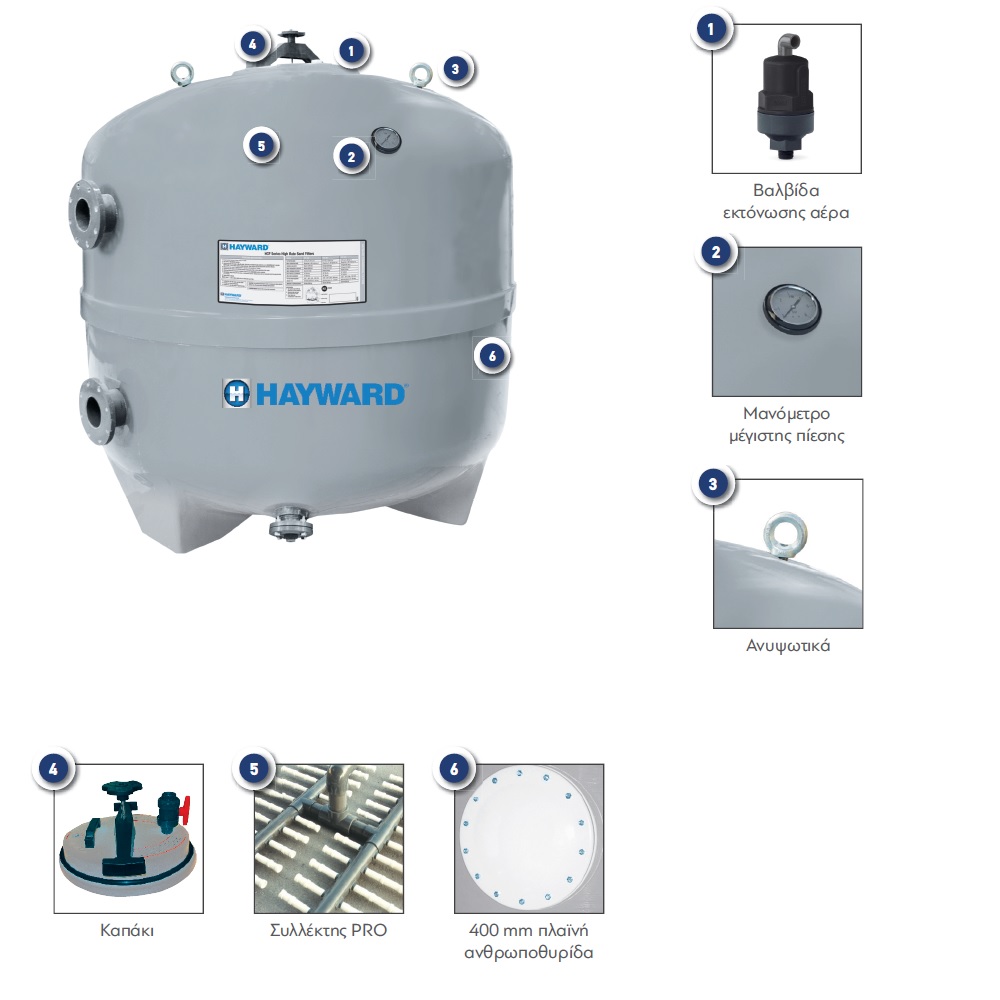

Includes air-relief valve, pressure gauge και sight glass (400mm).
The body of the filter is Polyester laminated.
It is ideal for large swimming pools.
Manufacturer:
Hayward
Model:
HCF Brasil
Diameter:
2350 mm
Flow rate:
130 - 217 m3/h
Connection:
Max. water temperature:
50oC
Πίεση κανονικής λειτουργίας:
0,5-1,5 bar
Maximum pressure:
2,5 bar
Filtration rate:
30-50 m3/h/m2
Filter material:
- AFM
- Quartz Sand
- Sand-Glass
Equipment:
- FV/PP/ABS
- PVC
Sand Granulometry:
- 0,5-1,0 mm
- 1-2 mm
- 2-3 mm
Weight:
530 kg
