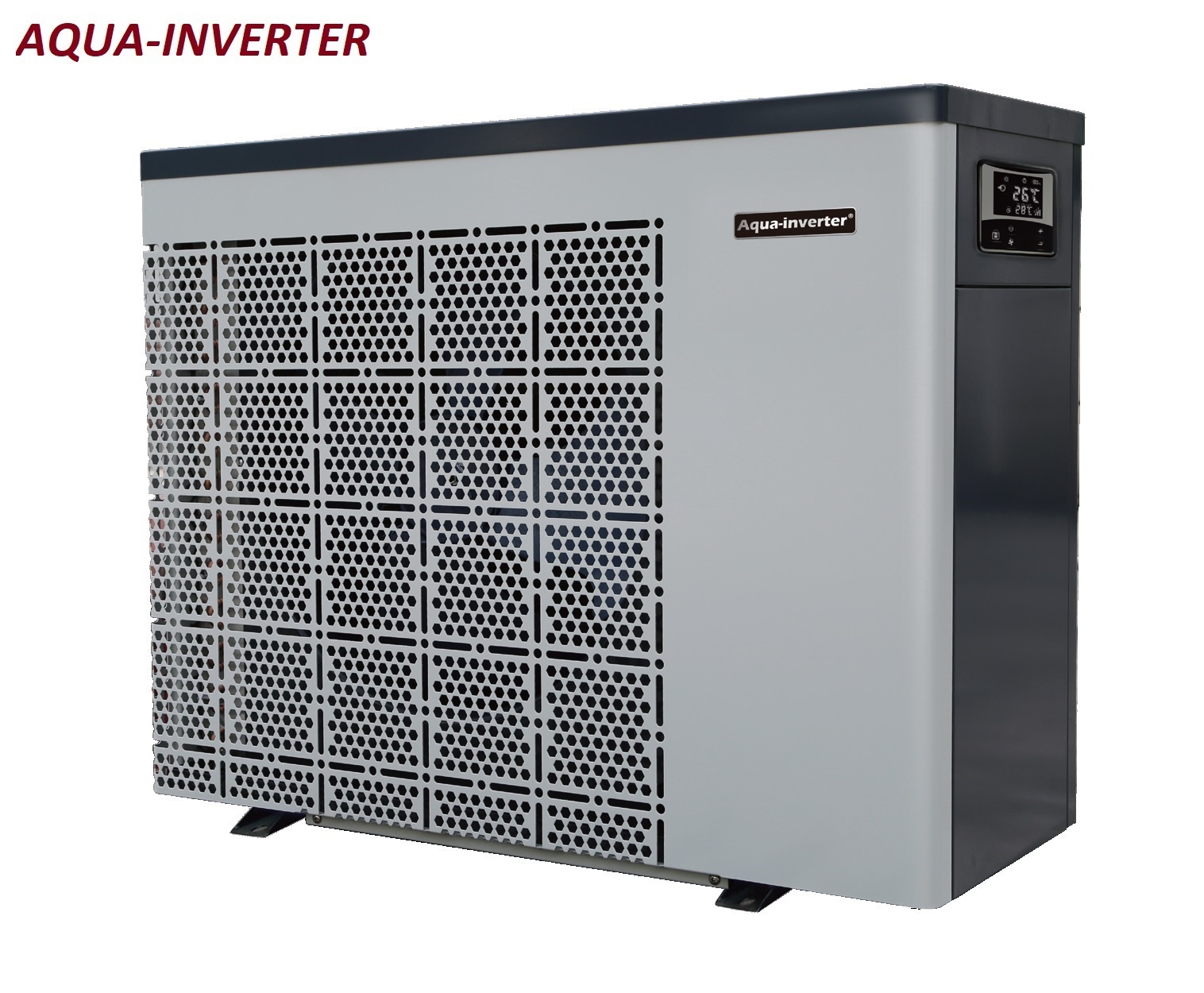

AI35T AQUA-INVERTER 35 kW
The most efficient heat pump:
10 times quieter with average sound pressure 46 dB (A) at 1m.
and double energy saving with average COP 11.
Contact us for wholesale prices!
Features
Model:
Aqua - Inverter
Power supply:
400V / 3 Ph / 50Hz
Advised pool volume (m³):
90 ~ 160
Nominal heating capacity (kW):
35
Guarantee:
- 2 years for all the parts
- 5 years for the titanium heat exchanger
- 5 years for the compressor
Aqua - Inverter: The most efficient heat pump with super-silent and problem-free operation.

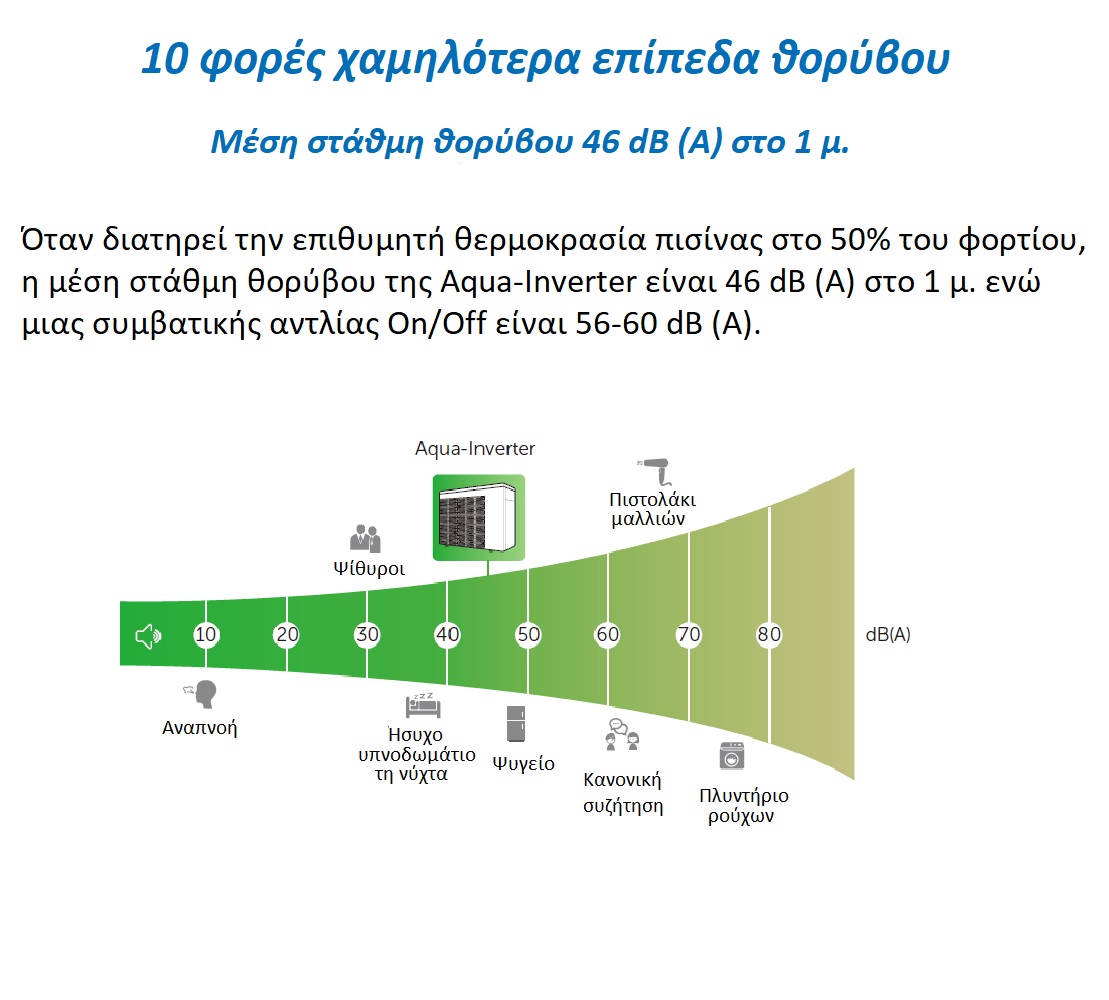

The average sound pressure is 46dB (Α) at 1 m., 10 times quieter than a conventional ON/OFF pump.

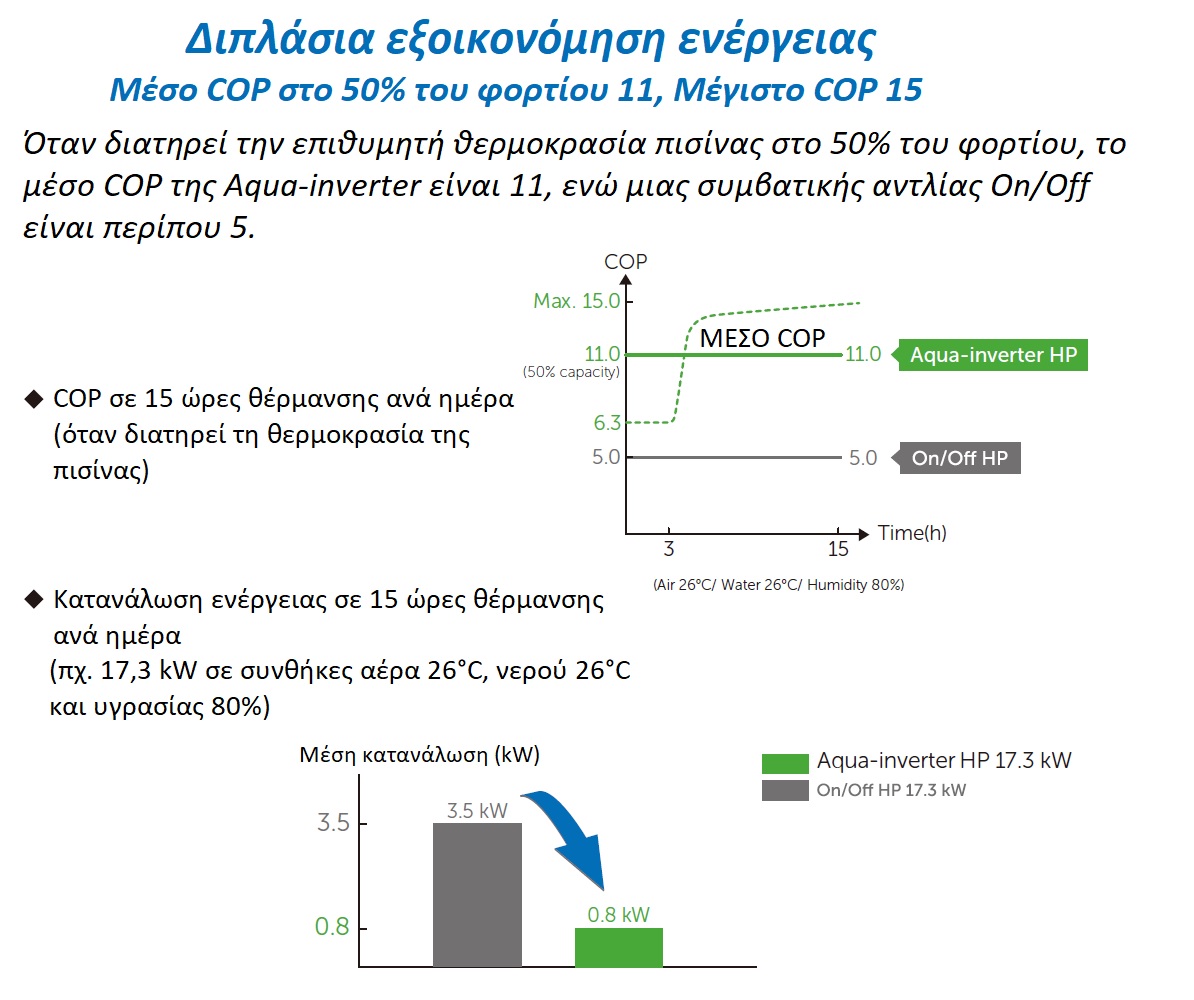

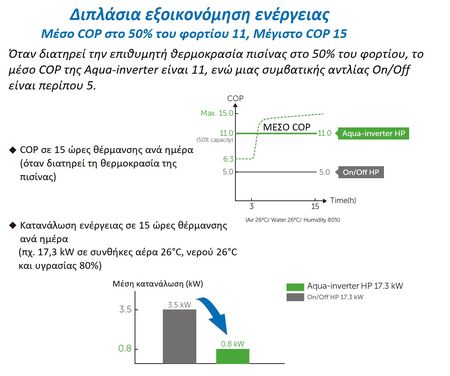

The average COP at 50% capacity is 11, whereas the average COP of a conventional ON/OFF pump is around 5.

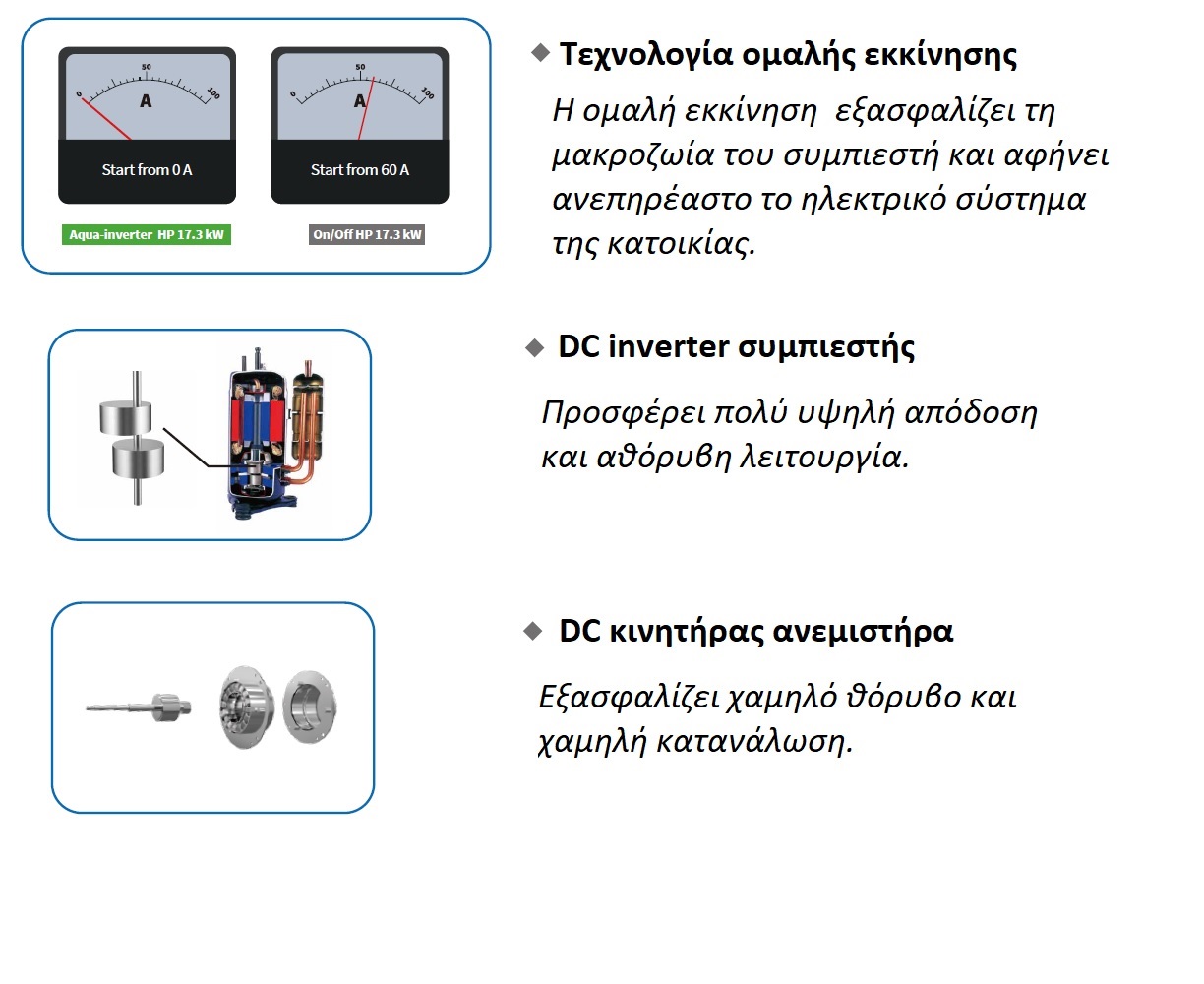

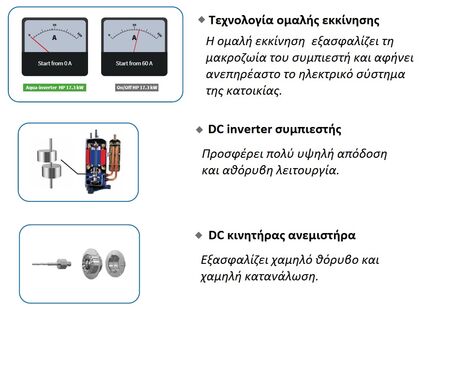

- The Twin-Rotary DC-inverter Compressor offers higher efficiency, lower vibration & quieter operation.
- Aqua-Inverter is powered by Full-inverter Technology. It adopts variable speed compressor & fan motor which adjusts the compressor speed hertz by hertz and fan speed round by round.
- Its Soft Start technology prevents overloading and triggering the safety switch, so the house electricity system is not affected.
- Its innovative HP Booster technology adapts the flow of the refrigerant at the ambient temperature, optimizing overall function and minimizing energy consumption.
- It is made of premium aluminum alloy casing, so it does not rust.
- It is certified by TUV Rheinland.
Model:
Aqua - Inverter
Power supply:
400V / 3 Ph / 50Hz
Advised pool volume (m³):
90 ~ 160
Nominal heating capacity (kW):
35
Guarantee:
- 2 years for all the parts
- 5 years for the titanium heat exchanger
- 5 years for the compressor
Operating air temperature (°C):
-7 ~ 43
Performance in conditions of Air 26°C / Water 26°C / Humidity 80%:
Heating power 35,2 kW, COP 15,5~5,5, COP at 50% capacity 10,6
Performance in conditions of Air 15°C / Water 26°C / Humidity 70%:
Heating power 24 kW, COP 8,0~4,5, COP at 50% capacity 7
Sound pressure at 1m dB(A):
42,6 ~ 54,7
Sound pressure of 50% capacity at 1m dB(A):
45,8
Sound pressure at 10m dB(A):
22,6 ~ 34,7
Compressor:
Twin-rotary Mitsubishi DC-inverter
Heat exchanger:
Spiral titanium tube in PVC
Rated input power at air 15°C (kW):
0,63 ~ 5,15
Rated input current at air 15°C (A):
0,91 ~ 7,4
Max input current (A):
9,5
Power cord (mm²):
5 × 2,5
Advised flow rate (m³/h):
12 ~ 18
Water pipe in-out size (mm):
50
Net dimension L x W x H (mm):
1161 × 530 × 958
Weight:
117 kg
