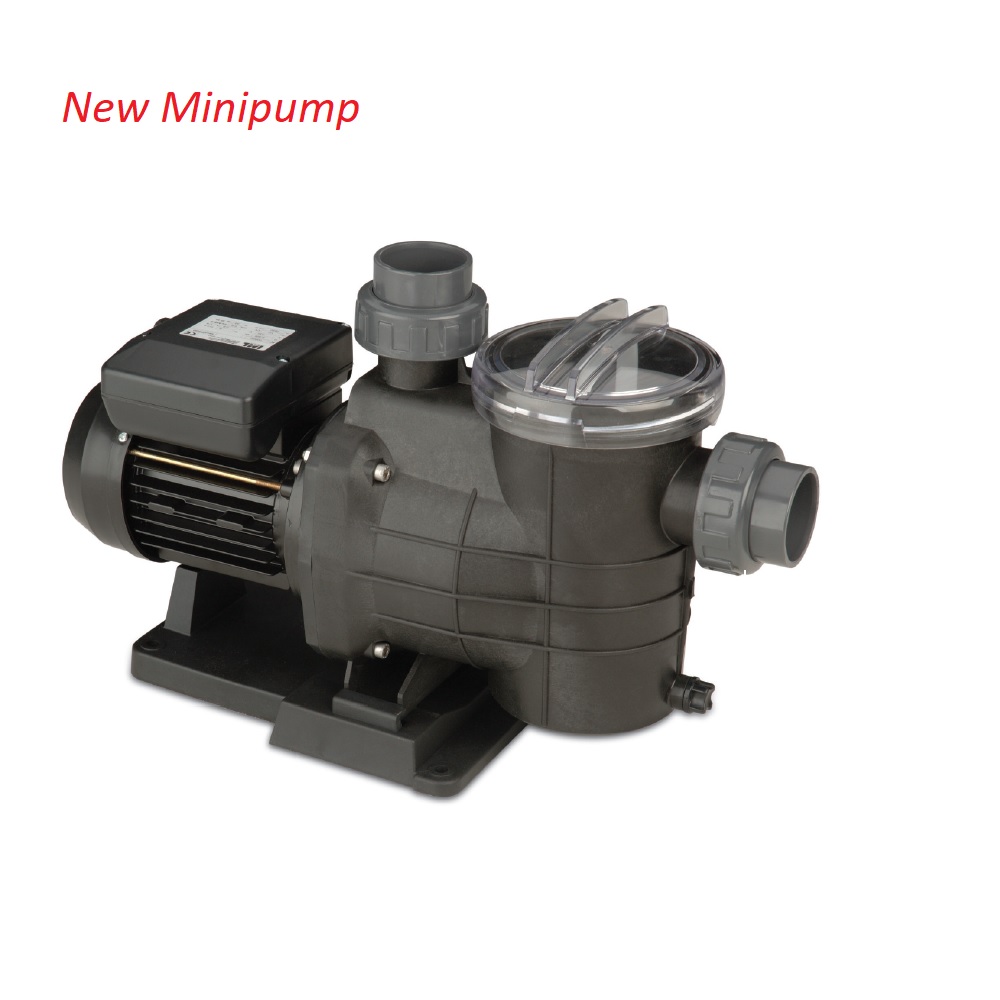

New Minipump 0,25 HP Single-phase Pump by IML
Features
Manufacturer:
IML
Model:
New Minipump
HP:
0,25
Operating voltage (Volt):
230
Flow rate (m³/h):
4
Connection:
New Minipump with built-in prefilter by IML.
The body of the pump is very resistant to the chemical products of the pool (made of polypropylene reinforced with fiberglass).
Transparent lid for easy observation of the prefilter.
Mechanical seal in graphite and ceramics.
The prefilter closes with a thread.
Engine shaft in AISI 316.
Silent operation (Protection IP-55, at 2.850 r.p.m).
Connection fittings for Ø50mm are included.
Manufacturer:
IML
Model:
New Minipump
HP:
0,25
Operating voltage (Volt):
230
Flow rate (m³/h):
4
Connection:
Max. water temperature:
50oC
Maximum pressure:
1,4 bar
Motor:
Classe F, IP55, 50Hz
Operating Speed:
2.850 r.p.m.
Motor shaft:
inox 316
Mechanical seal:
inox 316
Pump pre-filter:
Noryl
Impeler:
Noryl
Lid :
PP/PVC
Weight:
8 kg
